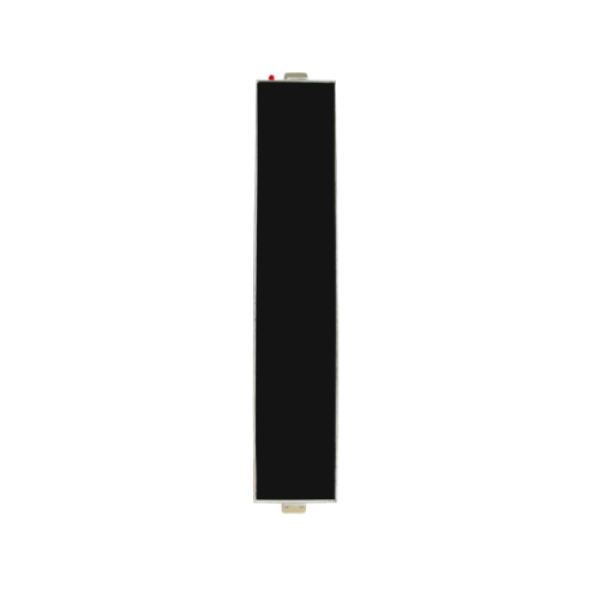

5dBi Linear Polarized RFID Panel Antenna

Designed for UHF RFID applications, this 5dBi linear polarized panel antenna operates across the 902-928MHz frequency range. Its directional radiation pattern provides a 95° horizontal beamwidth and 35° vertical beamwidth, making it suitable for focused RFID reading areas.

The antenna can be used in logistics tracking, warehouse management, access control systems, and runway management. With a VSWR of ≤1.5, 50Ω impedance, and a maximum input power of 50W, it provides stable RF performance for a variety of RFID deployment environments.

The antenna features a compact 460 × 90 × 20mm design and weighs approximately 0.65kg. Its IP65-rated enclosure helps protect the antenna against dust and water, while the -20°C to 60°C operating temperature range supports use in different working environments. A mounting-ear design allows convenient installation on suitable surfaces or structures.

Technical Specifications：

Typical Applications：

RFID Logistics Tracking
The directional panel design can be installed at specific reading points to support RFID identification and tracking during logistics operations.

Warehouse Management
The antenna can be positioned around storage areas, receiving points, or inventory checkpoints to create defined RFID reading zones.

Access Control
Its focused radiation pattern can be used in RFID access control applications where RFID tags need to be detected within a designated area.

Runway Management
The antenna can also be deployed in RFID-based runway management applications where directional tag identification is required.
