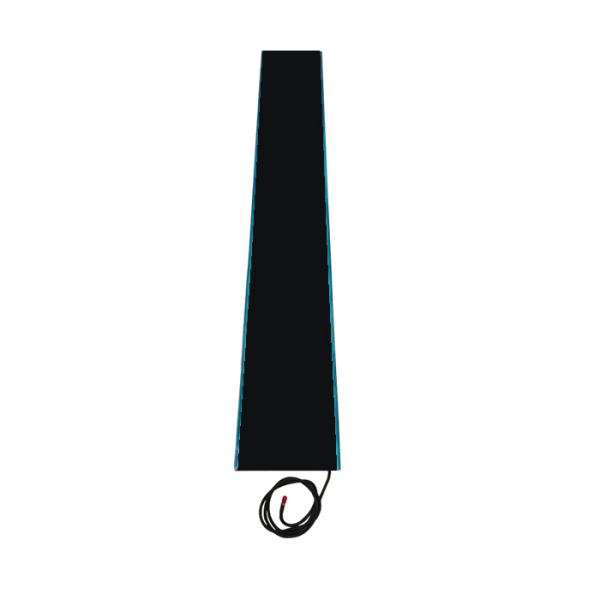

The 15dBi UHF RFID panel antenna is designed for long-range RFID applications operating in the 902–928MHz frequency band. Featuring high gain and circular polarization, this antenna supports RFID tag identification and tracking in logistics, warehousing, access control, and document management systems.
With a directional radiation pattern and a beamwidth of 75° horizontally and 25° vertically, the antenna helps concentrate RF energy within the target coverage area. Its slim, elongated panel structure makes it suitable for fixed RFID installations along warehouse aisles, logistics passages, storage areas, and other designated reading zones.
The antenna features a 50Ω impedance, a maximum input power of 50W, and a voltage standing wave ratio (VSWR) of ≤1.4. A DC-grounded lightning protection design provides an additional measure of protection against electrical surges. The antenna is equipped with an SMA female connector for RF connection.
The black radome is made of organic glass and is designed for operation in temperatures ranging from -40°C to +70°C, supporting deployment in a variety of industrial environments.
Key Features:
15dBi High Gain: Designed for directional UHF RFID applications requiring focused coverage.
902–928MHz Frequency Range: Suitable for RFID systems operating in this UHF band.
Circular Polarization: Helps accommodate RFID tags with varying orientations.
Directional Radiation Pattern: 75° horizontal and 25° vertical beamwidth.
Low VSWR: ≤1.4 for efficient antenna matching.
Durable Panel Design: Slim, elongated structure for fixed installation.
DC-Grounded Lightning Protection: Provides a grounding path for additional surge protection.
Wide Operating Temperature: Suitable for environments ranging from -40°C to +70°C.
Applications
RFID logistics tracking and shipment identification
Warehouse inventory management
RFID access control systems
File cabinet and document management
Fixed RFID tag reading stations
Industrial asset tracking and identification
Technical Specifications:
| Electrical specifications |
| Product Type |
UHF RFID Panel Antenna |
| Frequency Range |
902–928MHz |
| Antenna Gain |
15dBi |
| Polarization |
Circular Polarization |
| Beamwidth |
Horizontal: 75°; Vertical: 25° |
| VSWR |
≤1.4 |
| Front-to-Back Ratio |
≥20dB |
| Impedance |
50Ω |
| Maximum Input Power |
50W |
| Lightning Protection |
DC Grounded |
| Connector Type |
SMA |
| Mechanical indicators |
| Antenna Dimensions |
1800 × 188 × 21mm |
| Net Weight |
5.5kg |
| Package Dimensions |
184 × 23 × 6cm |
| Gross Weight |
6kg |
| Radome Material |
Organic Glass |
| Radome Color |
Black |
| Operating Temperature |
-40°C to +70°C |
Why Choose This UHF RFID Antenna?
This high-gain RFID panel antenna offers a combination of directional coverage, circular polarization, and a slim form factor for fixed RFID deployments. It is suitable for system integrators, RFID solution providers, logistics operators, and warehouse automation projects that require reliable UHF RFID tag reading within a defined coverage area.
For optimal performance, antenna placement, reader output power, tag orientation, and the surrounding RF environment should be considered during system installation.
